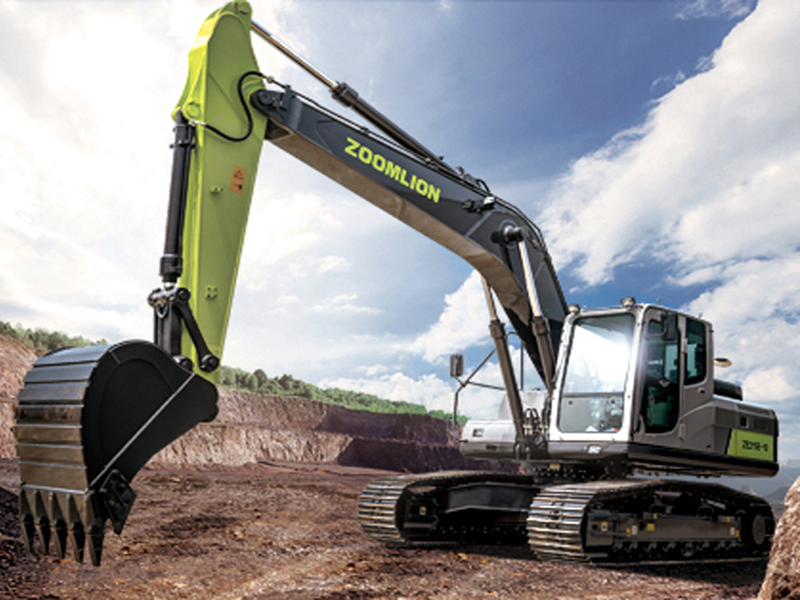

中联重科ZE215E-10液压挖掘机
中联重科20T级履带式液压挖掘机-ZE215E-10
Zoomlion ZE215E-10 Crawler Hydraulic Excavator
产品特点
(1)外部结构External structure
²
一抹*光时刻牵动视线Aurora-green coloring，always catch your eyes
Ø 焕新升级*光绿涂装造型、经典模块化覆盖件造型，造就夺目的视觉冲击，
Ø Renewal and upgrade Aurora-green painting and classical modular covering create an eye-catching visual impact.
Ø
加固升级大臂设计Reinforced Boom
Ø 加强加厚大臂关键应力点，大截面结构设计，使其能够轻松承受施工过程中所带来的巨大压力；
The strengthened and thickened key stress points of Boom and large section structure design can make the Boom withstand the tremendous pressure brought by the construction effortlessly.
²
减阻扩容加固铲斗Low-resistance and large- capacity bucket
Ø 为寻找铲斗在挖掘过程中的**佳切削角度，为此我们模拟实验出D-ARCS减阻扩容铲斗，并采用进口NM400*磨钢板，同时加厚加固铲斗磨损点，大幅提升了铲斗寿命及综合油耗。
In order to search the best cutting angle of the bucket in the excavation process, we conducted many excavation simulations and developed the D-ARCS low-resistance and large- capacity bucket. The imported NM400 wear-resistant steel plate is selected and the wear parts of the bucket are thickened and reinforced, which is to improve the bucket life and comprehensive fuel consumption.
²
底盘系统加固设计Reinforced undercarriage
Ø 关键磨损部位加强板材厚度，选用进口*磨钢板，升级重载型加长底盘及履带，X下车架设计、支重轮布局优化，配以强化版平台及工作装置，使整机的稳定性和部件的可靠性大幅提升。
The thickness of the plate for the key wear parts has been increased and the imported wear-resistant steel plate is adopted. The updated heavy and long chassis and track, the X -frame type undercarriage design and optimized layout of the track roller together with the reinforced upper frame and front linkage have increased the stability of the machine and the reliability of the components greatly.
²
火热工地保留密闭舒适空间
Keep a closed and comfortable driving space in the noisy construction
Ø 升级装配大屏显示器并搭载全新的人机交互操作系统，功能丰富，简洁易用；收音机、USB等娱乐功能一应俱全。优化空调鼓风机、装配工艺，进一步增强驾驶室密闭性及舒适性。让驾驶空间密闭舒适。
Large display with new man-machine interactive operating system and rich functions is simple and easy to use; radio, USB and other entertainment functions are all equipped. Optimized HVAC blower and assembly art enhanced the closeness and comfort of the cab greatly.
²
永不止步的探索节能低耗
Endless exploration for energy saving and low consumption
Ø 研制*进的电控系统，优化功率匹配，小时油耗更低，作业效率、燃油效率得到了显著提升；并且可根据工况优化匹配三种作业模式，在提升作业效率的同时更加节能。
Advanced electrical control system and optimized power matching lowered the fuel consumption rate and significantly improved operation efficiency and fuel efficiency. Besides, the three work modes can be matched optimizedly according to working conditions, which improves the operation efficiency and saves energy at the same time.
²
一“站”式保养设计One-stop maintenance design
所有维修保养操作都可从地面站立工位完成，保养点集中化布置分布，缩短保养时间。专用液压油，使用寿命大幅延长，为用户节约50%以上的保养成本。
All maintenance can be completed from the ground. Centralized distribution of maintenance points shortened the maintenance time. The special hydraulic oil can prolong the service life greatly and save more than 50% of the maintenance cost for users.
集中布置，点检舒适
Centralized layout to make the machine-checking comfortable
主要参数Technical Data
|
|
项目
Items |
单位
Unit |
数值
Value |
型号
Model |
操作质量
Operating mass |
㎏ |
21700 |
标准斗容
Standard bucket capacity |
m3 |
1 |
|
性能Performance |
回转速度
Swing speed |
r/min |
11.5 |
行走速度（高/低）
Travel speed (high / low) |
km/h |
5.5/3.3 |
**大牵引力
Maximum drawbar pull |
kN |
192 |
铲斗挖掘力（ISO）
Bucket digging force（ISO） |
kN |
147 |
斗杆挖掘力（ISO）
Arm digging force（ISO） |
kN |
105 |
发动机
Engine |
发动机厂家
Engine manufacturer |
- |
CUMMINS |
|
额定功率Rated power |
kw/rpm |
124/2050 |
|
排量Displacement |
L |
6.7 |
排放标准
Emission |
- |
国三
China stage3 |
尺寸
Dimensions |
总长Total length |
mm |
9555 |
|
总宽Total width |
mm |
2990 |
|
总高Total height |
mm |
3085 |
后部回转半径
Tail swing radius |
mm |
2800 |
|
履带轨距Track gauge |
mm |
2390 |
履带轴距
Track length on ground |
mm |
3460 |
作业范围
Work range |
**大挖掘距离
Max. digging reach |
mm |
9870 |
地面**大挖掘距离
Max. digging reach at ground level |
mm |
9690 |
**大挖掘深度
Max. digging depth |
mm |
6580 |
**大挖掘高度
Max. digging height |
mm |
9720 |
**大卸载高度
Max. dumping height |
mm |
6895 |
